Notebook Dashboards
Overview
Notebook Dashboards are a powerful tool for data visualization and analysis. They allow users to create custom dashboards on six notebooks in ClearVantage: Individual, Organization, Events, Product, Committee, and Chapter notebooks.
These dashboards can be customized to display specific data and metrics relevant to each notebook. For example, in an Organization notebook, the dashboard might display key performance indicators for the organization, while in an Events notebook, it might show data related to event attendance and feedback.
This flexibility allows users to tailor their dashboards to their specific needs and objectives, providing a clear and concise view of the data that matters most to them. It’s a great way to make data more accessible and actionable.
Notebook dashboards use gadgets to create these custom dashboards. These gadgets can be of various types such as graph, table view, and pivot table. Each type of gadget serves a unique purpose:
-
Graph: These are visual representations of data. They can be used to identify patterns, trends, and insights quickly and efficiently.
-
Table view: These are structured sets of data. They make it easy to organize and analyze large amounts of information.
-
Pivot Tables: These are powerful data summarization tools. They can automatically sort, count, total or average the data stored in one table or spreadsheet, displaying the results in a second table showing the summarized data.
How to Enable Notebook Dashboards
Notebook dashboards can be enabled in any of the six notebooks mentioned: Individual, Organization, Events, Product, Committee, and Chapter. This can be done in the standard Edit Layout interface, which can be accessed from the Activities Button/Panel. Three new tab options have been added for each applicable notebook type (e.g. "Member Dashboard 1-3" on the individual notebook).

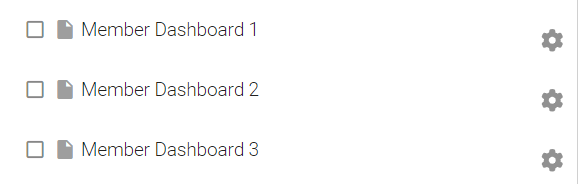

Enabling a dashboard by checking the associated checkbox will make it visible to the role associated with the user adding the notebook. This allows for customized views and access to information based on the specific role. It’s a great way to ensure that everyone has access to the information they need.

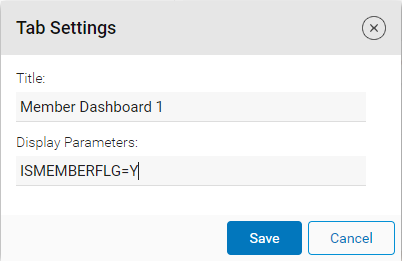

When enabling a dashboard one can specify a condition for the dashboard to be visible, you can create dynamic dashboards that change based on certain parameters. For example, if the display parameter to ISMEMBERFLG=Y, the dashboard will only be visible in the notebook if ismemberflg is set to Y.
If no display parameters are provided, the dashboard will appear on all notebooks.
The full range of supported display parameters are described below:
| Case | Example | Description |
|---|---|---|
| FIELD=VALUE | ISMEMBERFLG=Y | Display the dashboard for any notebook where the value in the provided database FIELD matches the specified VALUE. |
| FIELD=>VALUE | ATTENDEEMAXQTY=>100 | Display the dashboard for any notebook where the database FIELD contains a number greater than VALUE (for numeric data fields only). |
| FIELD=<VALUE | UNITPRICE=<50 | Display the dashboard for any notebook where the database FIELD contains a number less than VALUE (for numeric data fields only). |
| FIELD=|BTWN|VALUE1|VALUE2| | UDEF1AMT=|BTWN|0|20| | Display the dashboard for any notebook where the database FIELD contains a number between VALUE1 and VALUE2 (for numeric data fields only). |
| FIELD=|>DATE|GETDATE|-VALUE | SESSIONBEGDATE=|>DATE| GETDATE|-180 |
Display the dashboard for any notebook where the database FIELD contains a date greater than the current date plus or minus VALUE (date fields only, for displaying on records newer than some arbitrary date range). |
| FIELD=|<DATE|GETDATE|-VALUE | SESSIONBEGDATE=|<DATE| GETDATE|-180 |
Display the dashboard for any notebook where the database FIELD contains a date less than the current date plus or minus VALUE (date fields only, for displaying on records older than some arbitrary date range). |
| FIELD=|IN|VALUE1|VALUE2| VALUE3| |
STATUSSTT=|IN|Active| Pending| |
Display the dashboard for any notebook where the database FIELD contains a value that matches any of VALUE1, VALUE2, or VALUE3 (actual number of values provided may vary). |
Additionally, more than one display parameter may be provided. When providing more than one, simply separate each display parameter with a comma, not leaving any spaces before or after the comma for example:
PROGRAMALTCD=CONFERENCE,SESSIONBEGDATE=|>DATE|GETDATE|-365
The above display parameter will display the notebook dashboard on events with the CONFERENCE program that also have a start date in the future or no more than 365 days in the past.
How to Configure Notebook Dashboards
Once the dashboard is enabled, adding widgets to it follows the same process as for existing custom dashboards, the ‘Add Widget’ icon in the upper right corner of the dashboard.

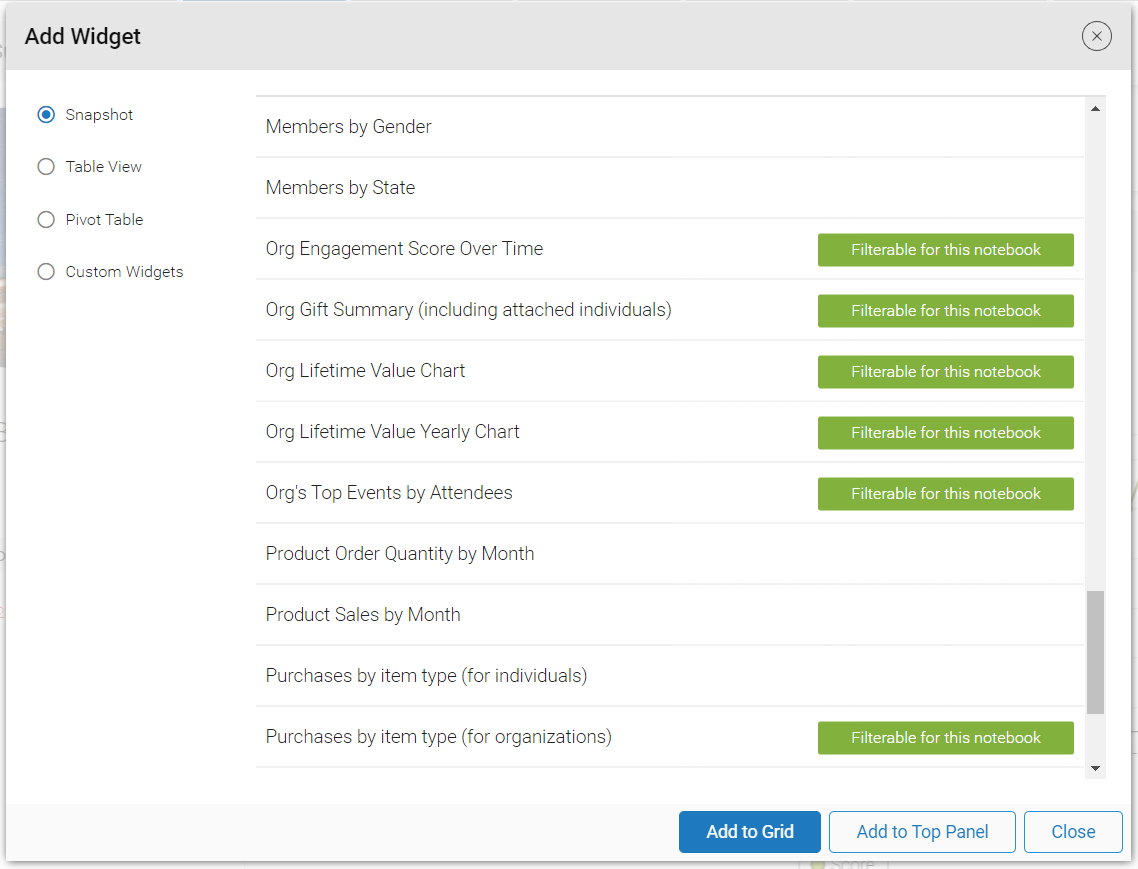

When reviewing the list of snapshots, table views, and pivot tables to add, a green tag ‘Filterable for this notebook’ will appear next to the widget indicating that it is filterable on the notebook currently being configured. This visual cue makes it easy to identify which widgets can be filtered in the dashboard being configured.
Additionally, each gadget will indicate its filter status in a comment at the bottom, providing further clarity on the record that the gadget is filtered for, and describing the data displayed.
List of Widgets/Gadgets Available
Most clients will have received baseline gadgets compatible with notebook dashboards as part of their regular CV updates. These gadgets are described below for reference. Additional gadgets may become available in future updates.
If you do not have the baseline gadgets in your environment and would like to have them added, please contact support.
| TYPE | NOTEBOOK | NAME | DESCRIPTION/NOTE |
|---|---|---|---|
| GRAPH | Chapter | Chapter Age Breakdown | Age breakdown of active chapter members, based on member's birthdate and today's date |
| GRAPH | Chapter | Chapter Member Classes | Breakdown by member class of active chapter members |
| GRAPH | Chapter | Chapter Member Types | Breakdown by member type of active chapter members |
| GRAPH | Chapter | Chapter Members by Role | Among active chapter members (ACTIVEFLG=Y), breakdown by role (CHAPTERROLE) |
| GRAPH | Chapter | Chapter Members by Year Joined | Yearly total of when currently-active chapter members joined the chapter; based on JOINDATE, if member does not have a chapter join date, they will be counted under ""0"" |
| GRAPH | Chapter | Chapter Members Top Job Titles | Top job titles represented amongst active chapter members (based on the job listed on the individual profile) |
| GRAPH | Chapter, Individual | Chapter Members by State (US-based) | Breakdown of active chapter members by state; non-US members are noted as ""*International"" |
| GRAPH | Chapter, Individual | Chapter Members Top 10 Orgs | Top orgs represented amongst active chapter members (based on the org listed on the individual profile) |
| GRAPH | Committee | Committee Member Classes | Breakdown of active committee members by member class, with member defined as having TERMINATIONDATE >= committee start/end date if available (active committee members only) |
| GRAPH | Committee | Committee Member Types | Breakdown of active committee members by member type, with member defined as having TERMINATIONDATE >= committee start/end date if available (active committee members only) |
| GRAPH | Committee | Committee Members Age Breakdown | Breakdown of active committee members by age, by comparing birthdate to committee start or end date if available, else to today's date |
| GRAPH | Committee | Committee Members by Role | Breakdown of active committee members by role (CPOSITION) on the committee |
| GRAPH | Committee | Committee Members Interests | Bar chart showing interests represented by on committee (active committee members only; data comes from the individual profile so may be inaccurate for older committees) |
| GRAPH | Committee | Committee Members Skills | Bar chart showing skills represented by on committee (active committee members only; data comes from the individual profile so may be inaccurate for older committees) |
| GRAPH | Committee | Committee Members Top Job Titles | Top 5 job titles represented on this committee (active committee members only; data is from the individual profile, so may be inaccurate for older committees) |
| GRAPH | Committee | Committee Members Top Orgs | Top 10 organizations represented on this committee (active committee members only; org affiliation is from the individual profile, so may be inaccurate for older committees) |
| TABLE | Committee, Individual | Chapter Members Committee Involvement | Committee involvement of active chapter members |
| TABLE | Committee, Individual | Committee Members Other Committees | Committee members are listed with their participation on other committees (active/nominee only) |
| GRAPH | Event | Event Age Breakdown | Age breakdown of non-cancelled, non-waitlisted registrants; age is calculated from birthdate and event start date |
| GRAPH | Event | Event Count by Chapter (primary chapter only) | Registrants totaled by primary chapter on the individual notebook (non-cancelled, non-waitlisted only) (NOTE: this data may be inaccurate for old events as individuals move in and out of chapters) |
| GRAPH | Event | Event Ethnicity Breakdown | Registrants totaled by individual ethnicity field (non-cancelled, non-waitlisted registrants only) |
| TABLE | Event | Event Fees Detail by Price Type | Event fees detailed by registration price type |
| GRAPH | Event | Event Fees Totaled by Price Type | Event fees totaled by registration price type |
| GRAPH | Event | Event Member Class Breakdown (All) | Member class breakdown for non-cancelled, non-waitlisted registrants; non-members are grouped as Non-Member, and member is determined by ISMEMBERFLG=Y for future events, and by TERMINATIONDATE>event date for past events |
| GRAPH | Event | Event Member Class Breakdown (Members Only) | Member class breakdown for non-cancelled, non-waitlisted registrants who are members (based on ISMEMBERFLG=Y for future events, and by TERMINATIONDATE>event date for past events) |
| GRAPH | Event | Event Reg Most Common Job Titles (top 10) | Top 10 list of job titles attending this event (data is only for non-cancelled, non-waitlisted registrants who had a job title at the time of the event) |
| GRAPH | Event | Event Reg Top 5 Cities (state-based membership) | Top 5 cities of registrants shown (based on in-state cities; city/state is saved to the registration so this data will be accurate over time; non-cancelled, non-waitlisted only) |
| GRAPH | Event | Event Reg Top 5 States (US-based) | Top 5 states of registrants (based on US membership; non-cancelled, non-waitlisted only) |
| TABLE | Event | Event Revenue Compared by GL | Compare to recent events of same program type, revenue totaled by GL account (posted monies only) |
| GRAPH | Event | Events Member Type Breakdown (All) | Member type breakdown for non-cancelled, non-waitlisted registrants; non-members are grouped as Non-Member, and member is determined by ISMEMBERFLG=Y for future events, and by TERMINATIONDATE>event date for past events |
| GRAPH | Event | Events Member Type Breakdown (Members Only) | Member type breakdown for non-cancelled, non-waitlisted registrants who are members (based on ISMEMBERFLG=Y for future events, and by TERMINATIONDATE>event date for past events) |
| TABLE | Event | Events Price Type Comparison | Totals by price type, compared to related events based on program type. This gadget works best for events that reuse the same price types. |
| GRAPH | Event | Events Registration Patterns Cumulative | Weekly cumulative registration count for this event, compared to related events (based on same program type). |
| TABLE | Event | Function Registration List | Function registrations for each registrant of the event including ADA Access and Dietary Needs |
| TABLE | Event, Individual | Credits Earned by Event | Credits Earned by Event |
| TABLE | Event, Individual | Registration Confirmation Emails | Registration auto emails for an event |
| TABLE | Individual | Ind Activity Timeline Past 1 Year | All activity done by an individual |
| GRAPH | Individual | Ind Email Blast Activity | Summary of emails that were bounced, opened, not opened, and clicked for an individual |
| TABLE | Individual | Ind Engagement Details | All engagement data, color-coded to indicate applicability based on configured scoring factors |
| GRAPH | Individual | Ind Engagement Score Over Time | Data available if Engagement Score is configured |
| TABLE | Individual | Ind Gift History | A list of Donation history from the individual |
| GRAPH | Individual | Ind Gift Summary | Sum of each donation by type |
| TABLE | Individual | Ind Lifetime Value Details | Detailed breakdown of member value by dues/events/prod/etc, with comparison to average for their member type |
| GRAPH | Individual | Ind Lifetime Value Summary Chart | Summary breakdown of member value by dues/events/prod/etc, with comparison to average for their member type |
| GRAPH | Individual | Ind Lifetime Value Yearly Chart | Yearly chart of member value |
| PIVOT | Individual | Purchases by item and item type (individuals) | Purchases by individuals in last year summarized by item and item type |
| GRAPH | Individual | Purchases by item type (for individuals) | Breakdown of purchases from individuals by item type |
| TABLE | Individual | Zoom Integration Status past 30 days | Status of registrations sent to zoom. Includes events in the future and up to 30 days in the past. |
| TABLE | Individual | Big Outstanding Invoices | Invoice with a balance due > $1000 |
| TABLE | Individual, Organization | Ind Master Cert Progress | Color-coded red for overdue, yellow for due w/in 90 days, green for future due. |
| TABLE | Organization | Communication Options for Org Contacts | Communication options for contacts belonging to organization |
| TABLE | Organization | Org Activity Timeline Past 1 Year | All activity done by an organization |
| TABLE | Organization | Org Engagement Details | All engagement data, color-coded to indicate applicability based on configured scoring factors. |
| GRAPH | Organization | Org Engagement Score Over Time | Data available if Engagement Score is configured |
| TABLE | Organization | Org Gift History (including attached individuals) | Detailed list of org's donations/gifts, including from attached individuals |
| GRAPH | Organization | Org Gift Summary (including attached individuals) | Summary chart of org's donations/gifts, including from attached individuals |
| GRAPH | Organization | Org Lifetime Value Chart | Summary breakdown of member value by dues/events/prod/etc (includes attached individuals), with comparison to average for their member type |
| TABLE | Organization | Org Lifetime Value Details | Detailed breakdown of member value by dues/events/prod/etc (includes attached individuals), with comparison to average for their member type |
| GRAPH | Organization | Org Lifetime Value Yearly Chart | Yearly chart of member value (includes attached individuals) |
| TABLE | Organization | Org's Committee Participation | Green for 1-2 seats, Blue for 3+ |
| GRAPH | Organization | Org's Top Events by Attendees | Top 10 Events with the most Attendees from an Org |
| PIVOT | Organization | Purchases by item and item type (organizations) | Purchases by organization in last year summarized by item and item type (pivot table) |
| GRAPH | Organization | Purchases by item type (for organizations) | Breakdown of purchases from organizations by item type |
| TABLE | Organization, Individual | Top Customers by Product | Top 100 customers for a product sorted by sum of value of purchases by the customer. |
| TABLE | Organization, Event, Individual | Zoom/Webinar Status | For zoom webinars only, registrant status for registered/waitlist, paid, Zoom push, and credits awarded. |
| GRAPH | Product | Download Totals | Download counts by Product |
| GRAPH | Product | Product Order Quantity by Month | Quantity order for a Product by month |
| TABLE | Product | Product Orders with Status | Yellow indicates needs fulfillment, green is fulfilled, purple is unknown, gray indicates fulfillment is non-applicable |
| GRAPH | Product | Product Sales by Month | Sales total by month over the last 12 months. |
